NAUTILUS™ PIPE FLOATS

GripTite™ technology for Pipe, Hose or Cable
(Patent Pending)

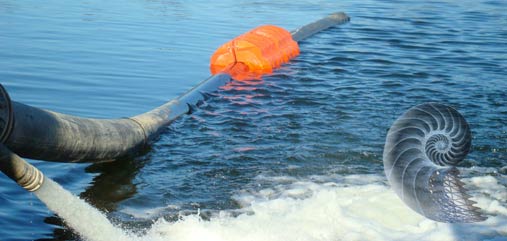

Nautilus Floats

Configuration of the inner core is a multi-faceted gripping surface that channels fluids between the pipe and float providing more contact area to a pipe that standard designs.

Tapered nose design reduces drag on float.
Available for pipe diameters from 2.5" - 30"
Weather resistant polyethylene (HDPE).
Replaces rusted & damaged steel pontoon floats.

NAUTILUS™ PIPE FLOAT SPECS
Item #	Pipe Size in (mm)	Overall Diameter in. (mm)	Overall Length in. (mm)	Bolts/Set	Weight lb. (kg)	Floatation Capacity lb. (kg)
4440600F92602	6" (152)	24" (610)	42" (1066)	6	65 (29.5)	215 (97)	Add to Estimate
4440800F92602	8" (203)	24" (610)	42" (1066)	6	65 (29.5)	204 (92)	Add to Estimate
4441000F92602	10" (254)	32" (812)	36" (914)	6	81 (36.8)	315 (143)	Add to Estimate
4441200F92602	12" (305)	32" (812)	40" (1016)	8	88 (40)	330 (150)	Add to Estimate
4441400F92602	14" (356)	32" (812)	45" (1143)	8	99 (45)	355 (161)	Add to Estimate
4441600F92602	16" (406)	45" (1143)	45" (1143)	8	160 (72.5)	745 (338)	Add to Estimate
4441800F92602	18" (457)	45" (1143)	45" (1143)	8	165 (75)	765 (347)	Add to Estimate
4442000F92602	20" (508)	46.5" (1181)	45" (1143)	8	187 (85)	820 (372)	Add to Estimate
4442200F92602	22" (559)	46.5" (1181)	45" (1143)	8	187 (85)	804 (365)	Add to Estimate
4442400F92602	24" (610)	48" (1219)	45" (1143)	8	193 (87.7)	825 (375)	Add to Estimate
* All dimensions and weights are approximate * Recommended capacity @ 50% submersion
