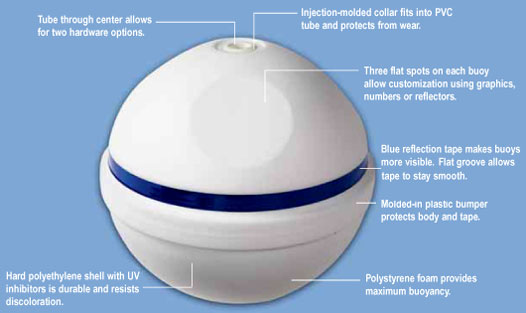

 The innovative design of Ace Mooring Buoys is easy to
recognize. Designed to be durable and attractive, the buoys
have several new features and can be personalized with
little effort. Three flat spots on the top half of the buoy
allow you to customize with graphics, numbers or
reflectors. When you approach your personalized buoy, a
molded-in plastic bumper protects both the buoy and
reflective blue tape that makes Ace buoys stand out in the
water. The tape stays smooth on its flat groove, right above
the center bumper.
 The hard polyethylene shell has
UV inhibitors to keep it looking
new. Polystyrene foam fills the
shell to provide maximum
buoyancy. A PVC tube is molded
through the center of the buoy to
allow for different hardware
options. An injection-molded
collar captures the tube on each
end and protects the buoy from
wear.
Buoys can be used to mark
waterways, can be rented to
boaters mooring at your marina,
or can be used to support the
line to which you anchor your
own watercraft. The buoys are also available without a bumper in the 32" x 38" & 42" sizes.
Why not choose a buoy that is durable, personal and eye-catching?
Warranty

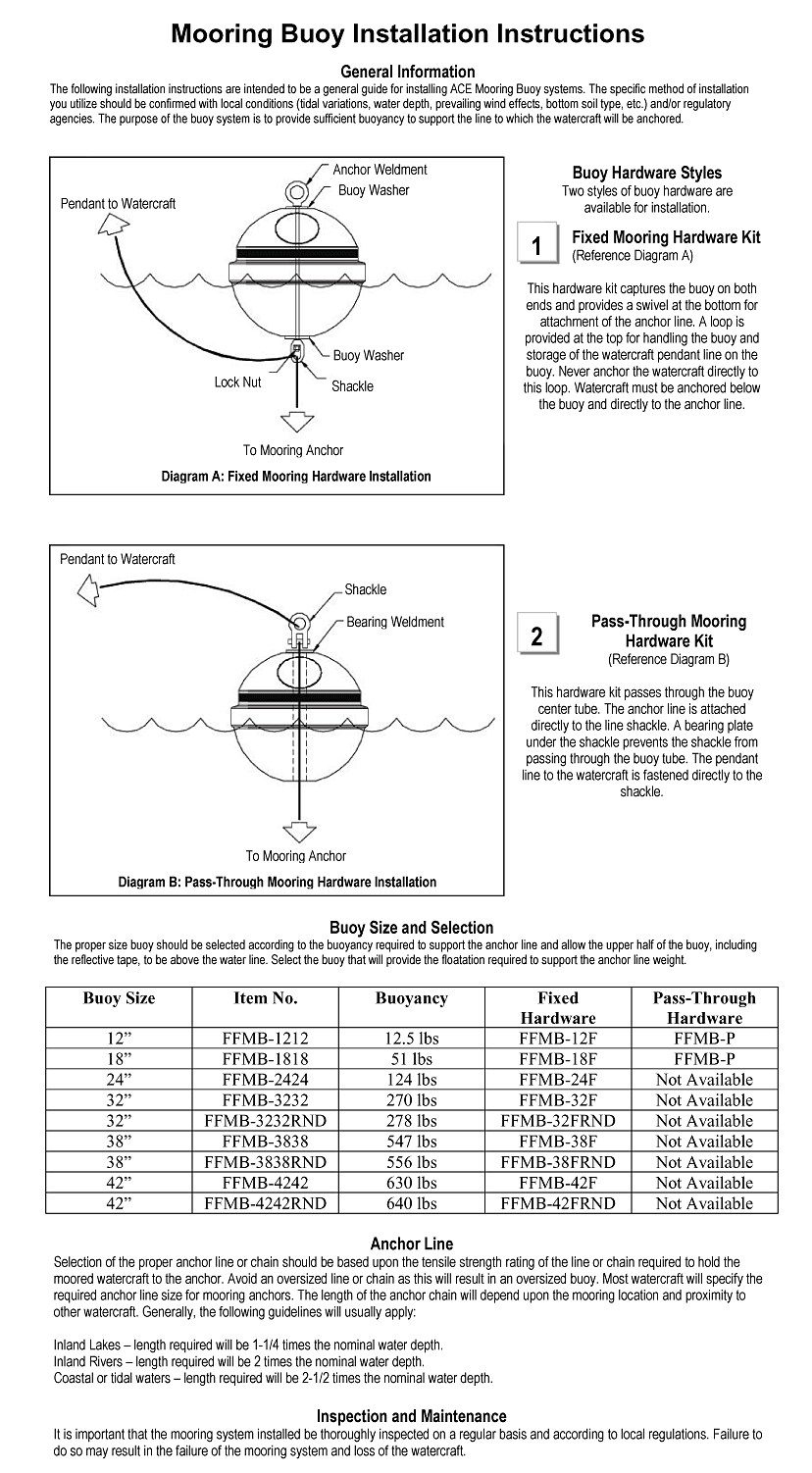

Click here to view the installation instructions.
(Click picture to enlarge.)
Hardware Options
 Option 1 - Fixed Mooring Hardware Kit.
This hardware kit captures the buoy on both ends and provides a swivel at the bottom for
attachment of the anchor line. A loop is provided at the top for handling the buoy and storage of
the watercraft pendant line on the buoy. Never anchor the watercraft directly to this loop. Watercraft
must be anchored below the buoy and directly to the anchor line.
Option 2 - Pass-Through Mooring Hardware Kit.
This hardware kit passes through the buoy center tube. The anchor line is attached directly to the line
shackle. A bearing plate under the shackle prevents the shackle from passing through the buoy tube.
The watercraft’s pendant line is fastened directly to the shackle.
|
Fixed Mooring
Hardware Kit
|
Pass-Through Mooring
Hardware Kit
|
| MOORING BUOYS |
| PART NO. |
DESCRIPTION |
DIMENSIONS |
BUOYANCY |
|
| FFMB-1212 |
Buoy, 12″ Bumper Mooring Foam Filled |
12″ diameter |
12.5 lbs |
Add to Estimate |
| FFMB-1818 |
Buoy, 18″ Bumper Mooring Foam Filled |
18″ diameter |
51 lbs |
Add to Estimate |
| FFMB-2424 |
Buoy, 24″ Bumper Mooring Foam Filled |
24″ diameter |
124 lbs |
Add to Estimate |
| FFMB-3232 |
Buoy, 32″ Bumper Mooring Foam Filled |
32″ diameter |
270 lbs |
Add to Estimate |
| FFMB-3232RND |
Buoy, 32″ Round Mooring Foam Filled |
32″ diameter |
278 lbs |
Add to Estimate |
| FFMB-3838 |
Buoy, 38″ Bumper Mooring Foam Filled |
38″ diameter |
547 lbs |
Add to Estimate |
| FFMB-3838RND |
Buoy, 38″ Round Mooring Foam Filled |
38″ diameter |
556 lbs |
Add to Estimate |
| FFMB-4242 |
Buoy, 42″ Bumper Mooring Foam Filled |
42″ diameter |
630 lbs |
Add to Estimate |
| FFMB-4242RND |
Buoy, 42″ Round Mooring Foam Filled |
42″ diameter |
640 lbs |
Add to Estimate |
| FFMB-32F |
32″ Fixed Mooring System – Bumper |
32″ |
|
Add to Estimate |
| FFMB-32FRND |
32″ Fixed Mooring System – Round |
32″ |
|
Add to Estimate |
| FFMB-38F |
38″ Fixed Mooring System – Bumper |
38″ |
|
Add to Estimate |
| FFMB-38FRND |
38″ Fixed Mooring System – Round |
38″ |
|
Add to Estimate |
| FFMB-42F |
42″ Fixed Mooring System – Bumper |
42″ |
|
Add to Estimate |
| FFMB-42FRND |
42″ Fixed Mooring System – Round |
42″ |
|
Add to Estimate |
|
