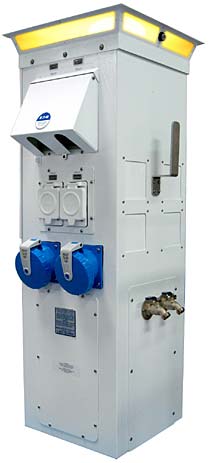

ADMIRAL SS

Truly the flagship of our unitized pedestal line, the Admiral - SS possesses amperage capabilities up to 500 Amps and voltages of 480/277 three-phase, 120/240 single-phase, 120/208 three-phase and combinations of these receptacles all in one unit to serve nearly any size MegaYacht.

Standard Features:

  • Heavy 316L Stainless Steel Housing That Is Powder Coated with a Polyester Resin
  • Photocell Controlled 13 Watt Fluorescent Light with Clear Lens That Provides 360 Degrees of Lighting
Available Options:
  • Dual Phone and/or Cable TV Connections
  • Four 100A Receptacles of Any Two Voltage Combinations Such As 277/480 Three-Phase, 120/208 Three-Phase, or 120/240 Single-Phase
  • 200A/480V Receptacles
  • When the 100A 120/240V Receptacles Are Used, Two 50 Amp 120/240V Receptacles Can Also Be Provided for a Total of 500 Amps
  • 20A/125V GFI Receptacle (Max of 3 GFI Receptacles per Pedestal)*
  • Single or Dual Cat5 High-Speed Internet Connections
  • Single or DualWater 1/4 Turn Ball Valves with 3/4 Hose Bibs and Stainless Steel Handles
  • Digital Metering Available
  • Wireless Remote Metering Available for Water and Electricity
  • LED Lighting
  • 30A and 50A twistlocks available
* 20 Amp GFI receptacles are not to be used for shore power.

Our professional staff will assist you and your design team through all aspects of your marina project including helping you to select the appropriate power pedestal.

Call for quote:
Phone: (208) 762-2719
Toll-Free: (800) 932-9414
E-Mail: info@scottcomarine.com

Admiral SS by Eaton

























Scottco Distributors, Inc.

Phone: (208) 762-2719
Toll-Free: (800) 932-9414
Fax: (208) 772-6353
E-Mail: info@scottcomarine.com
